P065A- GENERATOR PERFORMANCE

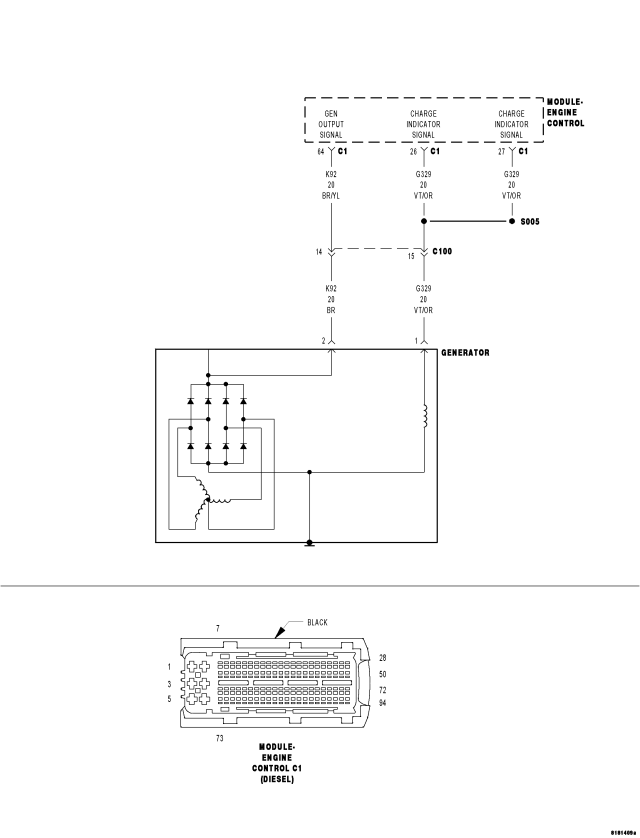

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
With the engine running.
- Set Condition:
The ECM detects that the Generator output is not within specifications.
| Possible Causes |
| GENERATOR BELT |
| GENERATOR BELT TENSIONER |
| (k92) GENERATOR OUTPUT SIGNAL CIRCUIT SHORT TO VOLTAGE |
| (k92) GENERATOR OUTPUT SIGNAL CIRCUIT OPEN |
| (A801) GENERATOR B+ CIRCUIT OPEN |
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
Diagnostic Test
1. CHECK FOR OTHER DTC'STurn the ignition on.
With the scan tool, check the ECM for Generator Lamp/L Terminal related DTC's.
Are there any Generator Lamp/L Terminal related DTCs?
Yes
- Repair other DTCs before continuing.
No
- Go To2
2. (A801) GENERATOR B+ CIRCUIT
Turn the ignition off.
Using a test light connected to ground, probe the (A801) B+ circuit at the generator.
Does the test tight illuminate brightly?
Yes
- Go To 3
No
- Repair the (A801) Generator B+ circuit for an open.
3. CHECK GENERATOR DRIVE BELT
Visually inspect the generator drive belt for glazing, cracks and other problems.
Inspect the generator drive belt and tensioner for proper tension.
Were any problems found?
Yes
- Repair or replace as necessary.
No
- Go To 4
4. (K92) GENERATOR OUTPUT SIGNAL CIRCUIT OPEN
Disconnect the Generator harness connector.
Disconnect the ECM harness connectors.

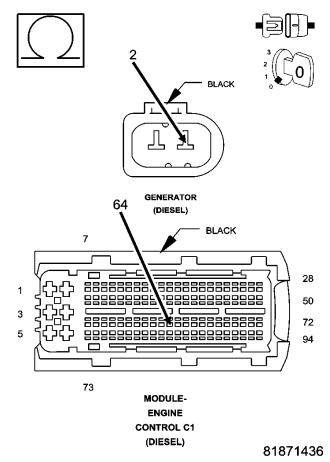

Measure the resistance of the (K92) Generator Output Signal circuit.
Is the resistance below 10.0 ohms?
Yes
- Go To5
No
- Repair the (K92) Generator Output Signal circuit for an open.
- Perform the ECM Verification Test Ver. 1 (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING).
5. (K92) GENERATOR OUTPUT SIGNAL CIRCUIT SHORT TO VOLTAGE
Remove the Main Relay.
Connect a jumper wire between cavity B7 and cavity B9 of the Main Relay connector.
Turn the ignition on.
Measure the voltage of the (K92) Generator Output Signal circuit.
Is the voltage above 1.0 volt?
Yes
- Repair the (K92) Generator Output Signal circuit for a short to voltage.
- Perform the ECM Verification Test Ver. 1. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
No
- Go To6
6. TEST DRIVE THE VEHICLE
With the scan tool, erase DTC's.
Test drive the vehicle.
With the scan tool, read DTC's.
Does the scan tool display this DTC?
Yes
- Replace the Generator.
No
- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
