2007 Compass Patriot MK Factory Service Manual 9 - ENGINE

P0459-EVAP PURGE SOLENOID CIRCUIT HIGH

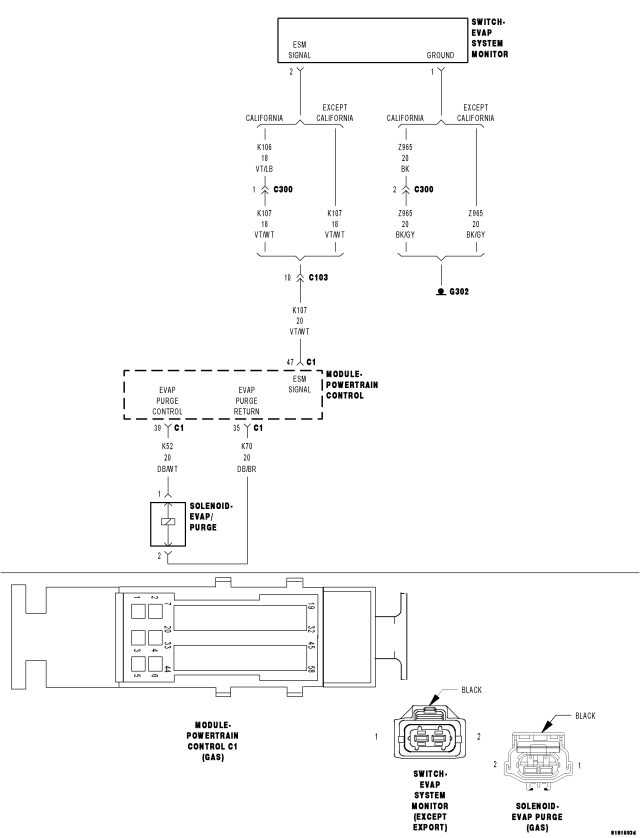

For a complete wiring diagram Refer to Section 8W



Possible Causes

INTERMITTENT DTC

(K52) EVAP PURGE CONTROL CIRCUIT SHORTED TO VOLTAGE

(K70) EVAP PURGE RETURN CIRCUIT SHORTED TO VOLTAGE

(K52) EVAP PURGE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE

EVAP PURGE SOLENOID

POWERTRAIN CONTROL MODULE (PCM)



Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - STANDARD PROCEDURE)



Diagnostic Test

1. DTC IS ACTIVE

Start the engine and allow it to reach normal operating temperature.

WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.


With the scan tool, select View DTCs.

Is the status Active for this DTC?

Yes


No

2. (K52) EVAP PURGE CONTROL CIRCUIT SHORTED TO VOLTAGE



Turn the ignition off.
Disconnect the Evap Purge Solenoid connector.
Disconnect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
Measure the voltage of the (K52) Evap Purge Control circuit in the Evap Purge Solenoid harness connector.

Is there any voltage present?

Yes


No

3. (K70) EVAP PURGE RETURN CIRCUIT SHORTED TO VOLTAGE



Measure the voltage of the (K70) Evap Purge Return circuit in the Evap Purge Solenoid harness connector.

Is there any voltage present?

Yes


No

4. (K52) EVAP PURGE CONTROL CIRCUIT OPEN OR HIGH RESISTANCE

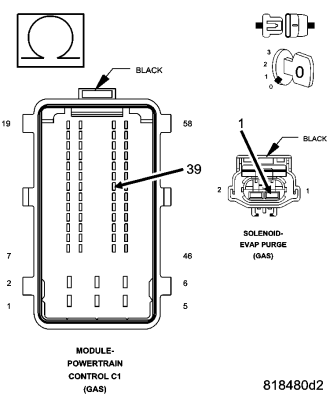

Measure the resistance of the (K52) Evap Purge Control circuit between the Evap Purge Solenoid harness connector and the Powertrain Control Module (PCM) harness connector.

Is the resistance below 5.0 ohms?

Yes


No

5. EVAP PURGE SOLENOID



Connect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
With the scan tool, actuate the Evap Purge Solenoid control to the ON (100%) position.
Using a 12 volt test light connected to ground, check the (K52) Evap Purge Control circuit in the Evap Purge Solenoid harness connector.

NOTE: The test light should be illuminated and bright. Compare the brightness to that of a direct connection to the battery.


With the scan tool, actuate the Evap Purge Solenoid control to the OFF (0%) position.
Using a 12 volt test light connected to ground, check the (K52) Evap Purge Control circuit in the Evap Purge Solenoid harness connector.

NOTE: The test light should not be illuminated.



Is the test light illuminated and bright with the actuator ON (100%) and not illuminated with the actuator OFF (0%)?

Yes


No

6. POWERTRAIN CONTROL MODULE (PCM)

Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Evap Purge Solenoid and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Refer to any Technical Service Bulletins that may apply.

Were any problems found?

Yes


No
