P2017-INTAKE MANIFOLD RUNNER POSITION SENSOR CIRCUIT HIGH

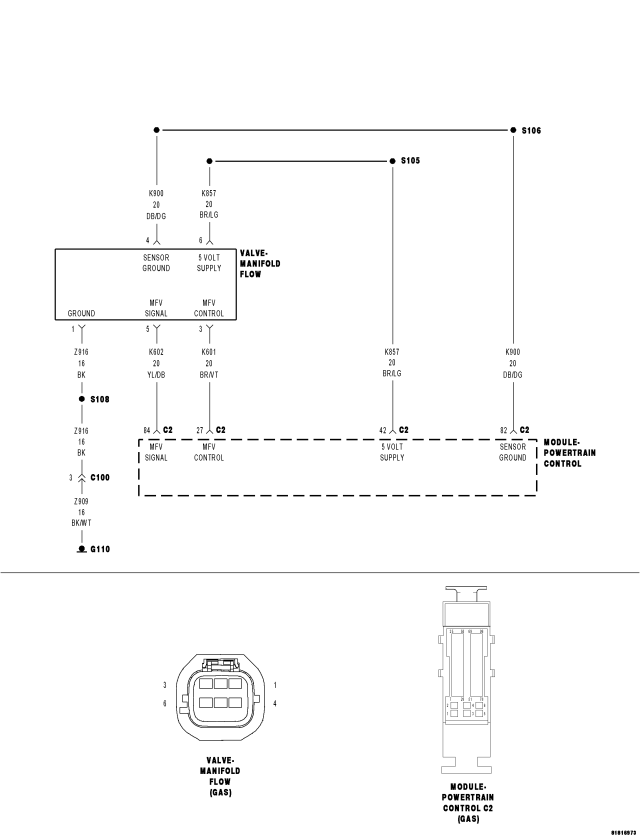

For a complete wiring diagram Refer to Section 8W
- When Monitored:
With the ignition on and battery voltage greater than 10.4 volts.
- Set Condition:
The PCM detects that the MFV Position Sensor input voltage is above the maximum acceptable value.
| Possible Causes |
| INTERMITTENT DTC |
| (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE |
| (K602) MFV SIGNAL CIRCUIT SHORTED TO VOLTAGE |
| (K602) MFV SIGNAL CIRCUIT SHORTED TO THE (K857) 5 VOLT SUPPLY CIRCUIT |
| (K602) MFV SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE |
| (K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE |
| MANIFOLD FLOW VALVE |
| POWERTRAIN CONTROL MODULE (PCM) |
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
Diagnostic Test
1. DTC IS ACTIVENOTE: Diagnose and repair any system voltage or sensor reference voltage DTCs before continuing with this test.
Start the engine and allow it to reach normal operating temperature.
WARNING: When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts, or fan. Do not wear loose clothing. Failure to follow these instructions can result in personal injury or death.
With the scan tool, select View DTCs.
Is the status Active for this DTC?
Yes
- Go to 2
No
- Refer to the *CHECKING FOR AN INTERMITTENT DTC Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
2. (K857) 5 VOLT SUPPLY CIRCUIT SHORTED TO VOLTAGE
Turn the ignition off.
Disconnect the Manifold Flow Valve connector.
Disconnect the Powertrain Control Module (PCM) connector.
Turn the ignition on.
Measure the voltage of the (K857) 5 Volt Supply circuit in the Manifold Flow Valve harness connector.
Is there any voltage present?
Yes
- Repair the (K857) 5 Volt Supply circuit for a short to voltage.
- Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - STANDARD PROCEDURE).
No
- Go to 3
3. (K602) MFV SIGNAL CIRCUIT SHORTED TO VOLTAGE
Measure the voltage of the (K602) MFV Signal circuit in the Manifold Flow Valve harness connector.
Is there any voltage present?
Yes
- Repair the (K602) MFV Signal circuit for a short to voltage.
- Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - STANDARD PROCEDURE).
No
- Go to 4
4. (K602) MFV SIGNAL CIRCUIT SHORTED TO THE (K857) 5 VOLT SUPPLY CIRCUIT
Measure the resistance between the (K602) MFV Signal circuit and the (K857) 5 Volt Supply in the Manifold Flow Valve harness connector.
Is the resistance below 100 ohms?
Yes
- Repair the (K602) MFV Signal circuit for a short to the (K857) 5 Volt Supply circuit.
- Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - STANDARD PROCEDURE).
No
- Go to 5
5. (K602) MFV SIGNAL CIRCUIT OPEN OR HIGH RESISTANCE
Turn the ignition off.

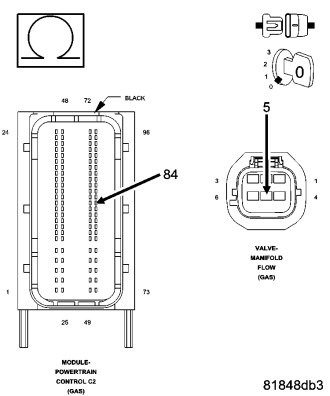

Measure the resistance of the (K602) MFV Signal between the Manifold Flow Valve harness connector and the Powertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes
- Go to 6
No
- Repair the (K602) MFV Signal for an open circuit or high resistance.
- Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - STANDARD PROCEDURE).
6. (K900) SENSOR GROUND CIRCUIT OPEN OR HIGH RESISTANCE

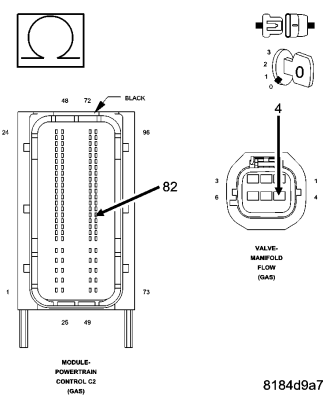

Measure the resistance of the (K900) Sensor Ground circuit between the Manifold Flow Valve harness connector and the Powertrain Control Module (PCM) harness connector.
Is the resistance below 5.0 ohms?
Yes
- Go to 7
No
- Repair the (K900) Sensor Ground circuit for an open circuit or high resistance.
- Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - STANDARD PROCEDURE).
7. MANIFOLD FLOW VALVE
Turn the ignition off.
Connect the Powertrain Control Module (PCM) connector.
Connect a jumper wire between the (K900) Sensor Ground circuit and the (K602) MFV Signal circuit in the Manifold Flow Valve harness connector.
Turn the ignition on.
With the scan tool, read the Manifold Flow Valve signal voltage.
Is the voltage below 1.0 volt with the jumper wire in place?
Yes
- Replace the Manifold Flow Valve in accordance with the Service Information.
- Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - STANDARD PROCEDURE).
No
- Go to 8
8. POWERTRAIN CONTROL MODULE (PCM)
Using the wiring diagram/schematic as a guide, inspect the wiring and connectors between the Manifold Flow Valve and the Powertrain Control Module (PCM).
Look for any chafed, pierced, pinched, or partially broken wires.
Look for broken, bent, pushed out or corroded terminals.
Monitor the scan tool data relative to this circuit and wiggle test the wiring and connectors.
Look for the data to change or for the DTC to reset during the wiggle test.
Refer to any Technical Service Bulletins that may apply.
Were any problems found?
Yes
- Repair as necessary.
- Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - STANDARD PROCEDURE).
No
- Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
- Perform the PCM Verification Test Ver. 1 (Refer to 9 - ENGINE - STANDARD PROCEDURE).
