U0402-IMPLAUSIBLE DATA RECEIVED FROM TCM

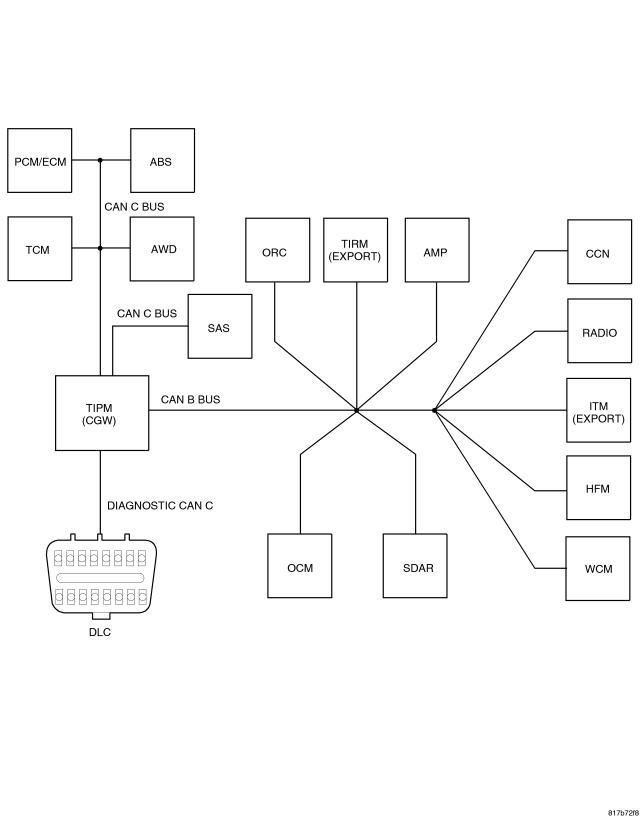

For a complete wiring diagram Refer to Section 8W
- When Monitored:
Continuously while the system is active.
- Set Condition:
Implausible data has been received over the bus from the Transmission Control Module (TCM).
| Possible Causes |
| INTERMITTENT DTC |
| CAN BUS OPEN OR SHORTED CONDITION |
| TRANSMISSION CONTROL MODULE (TCM) |
| POWERTRAIN CONTROL MODULE (PCM) |
Always perform the Pre-Diagnostic Troubleshooting procedure before proceeding. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
Diagnostic Test
1. ACTIVE DTCNOTE: Diagnose all CAN B and C communication DTCs before continuing.
Turn the ignition on.
With a scan tool, view DTCs.
Is the status Active for this DTC?
Yes
- Go to 2
No
- Refer to the INTERMITTENT CONDITION Diagnostic Procedure. (Refer to 9 - ENGINE - DIAGNOSIS AND TESTING)
- Perform the PCM Verification Test Ver. 1. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
2. TCM COMMUNICATION RELATED DTCS IN OTHER MODULES
With a scan tool check for TCM communication related DTCs in other modules on the CAN Bus.
Are there any TCM communication related DTCs in other modules on the CAN Bus at this time?
Yes
- Replace and program the Transmission Control Module (TCM) in accordance with the Service Information.
- Perform the PCM Verification Test Ver. 1. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
No
- Replace and program the Powertrain Control Module (PCM) in accordance with the Service Information.
- Perform the PCM Verification Test Ver. 1. (Refer to 9 - ENGINE - STANDARD PROCEDURE)
