THERMOSTAT-ENGINE COOLANT

DESCRIPTION

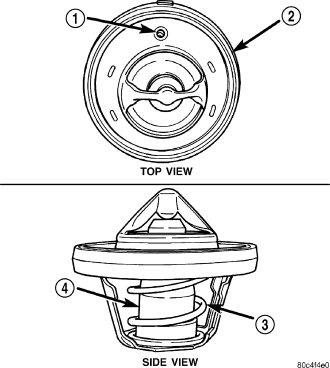

The primary thermostat is located on the front of the water plenum in the thermostat housing/coolant inlet. The thermostat has an air bleed vent located on its flange. The air bleed vent (1) and the locator dimple on thermostat seal provide for proper positioning of thermostat in inlet housing.

The secondary thermostat is located in the cylinder head under the water plenum.

OPERATION

When the Engine is cold and both the primary and secondary thermostats are closed. The coolant will circulate through the engine, heater system, and the bypass. The cooling system has no flow through the radiator

As the engine warms up, the primary thermostat will start to open at 82 °C ( 179 °F). Coolant will start to flow through the radiator oil cooler and transmission cooler. Coolant will flow through the transmission oil cooler only when the primary thermostat is fully open. The primary thermostat will fully open at 95 °C (203 °F).

The secondary thermostat will start to open at 95 °C (203 °F). This will increase the coolant flow through the cylinder block and cylinder head and the radiator. The secondary thermostat will fully open at 110 °C (230 °F).

If the thermostat is stuck open or allows coolant leakage through it, the engine will not operate at the proper temperature for obtaining engine fuel efficiency, performance and emissions levels. If this condition occurs, a diagnostic trouble code will be set and a MIL light will be turned on. Refer to the Powertrain Diagnostic Procedures manual for further information and diagnostics provided.
