CLOSURE PANEL-UPPER RADIATOR
REMOVAL

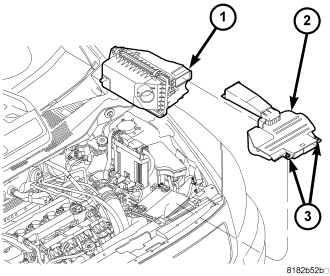

1. Rotate the two retaining clips (3) and remove the air cleaner snorkel (2) from air cleaner box (1).

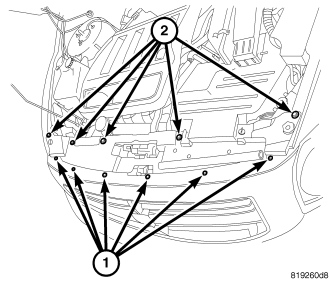

2. Remove fascia fasteners (1).
3. Remove closure panel fasteners (2).
4. Remove closure panel from vehicle.
INSTALLATION
1. Slide closure panel under fascia aligning holes.
2. Tighten fascia fasteners (1).
3. Insert closure panel fasteners (2) and tighten.
4. Insert air cleaner snorkel into airbox opening. Rotate the two retaining clips (3) and fasten into closure panel ensuring fit.
