MIRROR-OUTSIDE REARVIEW
REMOVAL

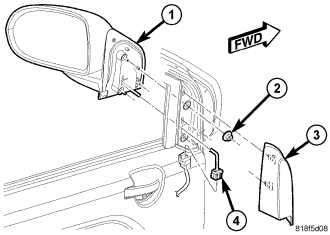

1. Using a trim stick C-4755 or equivalent, remove the mirror flag trim (3).
2. Remove the nuts (2) and disconnect the electrical connectors (4).
3. Remove the mirror (1).
INSTALLATION
1. Install the mirror (1).
2. Install the nuts (2) and tighten to 5 N·m (44 in. lbs.).
3. Connect the electrical connector (4).
4. Position the mirror trim flag (3) and seat the clips fully.
