MOLDING - SILL
REMOVAL

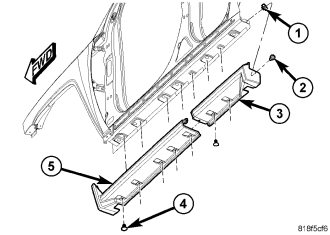

NOTE: Compass shown, SRT-4 and Caliber similar.
1. Remove the end screws from the cladding (2).
2. Remove the push pin fasteners (4) and remove the cladding (3 and 5).
INSTALLATION
NOTE: Compass shown, SRT-4 and Caliber similar.
1. Position the rear cladding (3) onto the vehicle and install the pushpin fasteners (4).
2. Position the front cladding (5) onto the vehicle and install the pushpin fasteners (4).
3. Install the end screws (3).
