PANEL-COWL TOP
REMOVAL
1. Remove the wiper arms (2), (Refer to 8 - ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - REMOVAL).

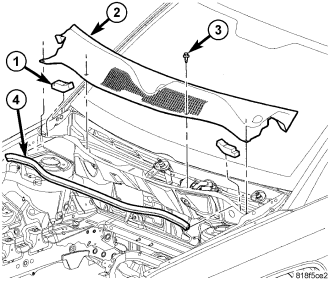

2. Remove the hood seal (4).
3. Remove the screws (3) and remove the panel (2).
INSTALLATION
1. Position the end seals (1) into place.
2. Install the panel (2) and install the screws (3).
3. Install the hood seal (4).
4. Install the wiper arms (2), (Refer to 8 - ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - INSTALLATION).
