2007 Compass Patriot MK Factory Service Manual 23 - BODY

RACK-LUGGAGE

REMOVAL

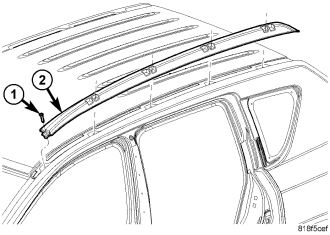

1. Remove the screws (1) and remove the luggage rack rails (2).

INSTALLATION




1. Install the roof rack rails (2) and install the screws (1).
2. Tighten the screws to 4 N·m (35 in. lbs.).
