SPLASH SHIELD-REAR WHEELHOUSE
REMOVAL

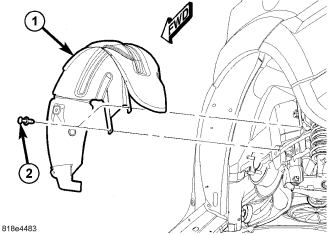

1. Remove the fasteners (1) along the outer edge of the splash shield.

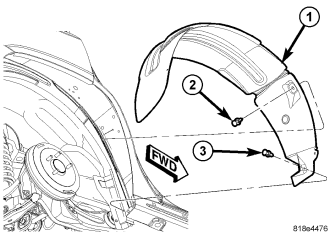

2. Remove the front push pin fasteners (2 - 3).

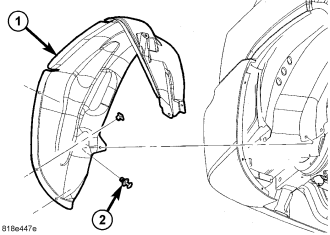

3. Remove the rear push pin fasteners (2).
4. Remove the inner push pin fasteners and remove the splash shields (1).
INSTALLATION
1. Install the splash shield (1) and install the inner push pin fasteners.
2. Install the rear fastener (2).
3. Install the front push pin fasteners (2 - 3).
4. Install the fasteners (1) along the outer edge of the splash shield.
