SPOILER - LIFTGATE
REMOVAL

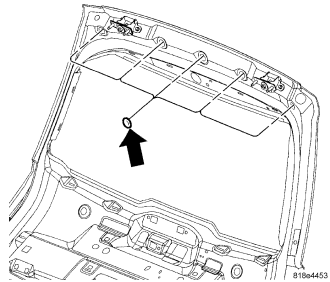

1. Remove the liftgate trim plugs.

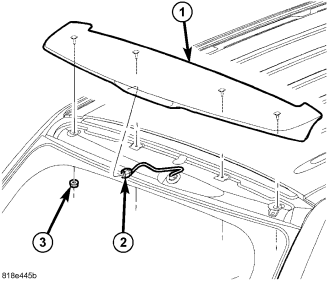

2. Remove the nuts (3).
3. Remove the spoiler (1) and disconnect the electrical connector.
INSTALLATION
1. Connect the electrical connector (2) and install the spoiler (1).
2. Install the nuts (3) and tighten to 8.5 N·m (75 in. lbs.)
3. Install the trim plugs.
