INSTALLATION
INSTALLLATION

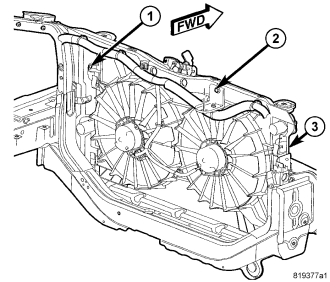

1. Install the radiator fan assembly into J-clips.
2. Install radiator fan fasteners. Tighten all radiator fan retaining screws to 6 N·m (55 in. lbs.).
3. Install radiator crossmember (Refer to 23 - BODY/EXTERIOR/RADIATOR CROSSMEMBER - INSTALLATION).
4. Install wiring harness bracket (2).
5. Connect radiator fan electrical connector (1).
6. Install upper radiator hose.
7. Connect negative battery cable.
8. Fill cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
