INSTALLATION
LAMP

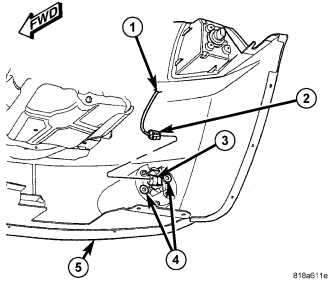

1. Position the front fog lamp into the seat in the face of the front fascia (5). Be certain that the two alignment pins on the back of the lamp housing are engaged in the alignment holes in the seat.
2. Install and tighten the two screws (4) that secure the lamp to the back of the fascia. Tighten the screws to 2 N·m (14 in. lbs.).
3. Reconnect the engine compartment wire harness (1) connector (2) to the fog lamp bulb (3) connector receptacle.

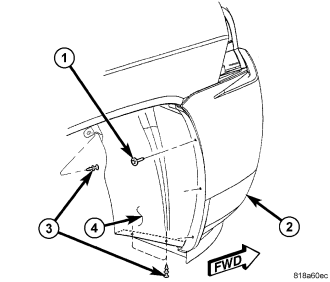

4. Position the front of the front wheel house splash shield (4) to the front fascia (2) closure panel and secure it with two push pin fasteners (3).
5. Install the push pin fastener (3) that secures the inboard side of the splash shield to the front end sheet metal.
6. Install and tighten the three screws (1) that secure the outboard side of the splash shield to the front fascia. Tighten the screws to 2 N·m (19 in. lbs.).
7. Reinstall the front wheel and tire. (Refer to 22 - TIRES/WHEELS - INSTALLATION).
8. Lower the vehicle.
9. Reconnect the battery negative cable.
10. Confirm proper front fog lamp alignment. (Refer to 8 - ELECTRICAL/LAMPS/LIGHTING - EXTERIOR - STANDARD PROCEDURE - FRONT LAMP AIMING).
BULB
CAUTION: Always use the correct bulb size and type for replacement. An incorrect bulb size or type may overheat and cause damage to the lamp, the socket or the lamp wiring.
CAUTION: Do not contaminate the bulb glass by touching it with your fingers or by allowing it to contact other oily surfaces. Shortened bulb life will result.

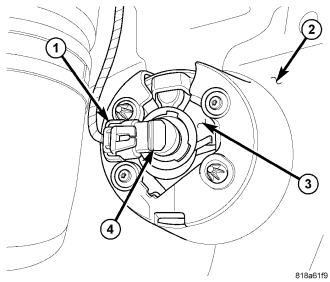

1. Align the front fog lamp bulb (4) with the keyed opening on the back of the front fog lamp housing (3).
2. Insert the bulb into the housing until it is firmly seated.
3. Rotate the bulb clockwise about 30 degrees to lock it into place. The bulb connector receptacle should be pointed inboard and horizontal in orientation.
4. Reconnect the engine compartment wire harness connector (1) to the bulb connector receptacle.
5. Position the front of the front wheel house splash shield (4) to the front fascia (2) closure panel and secure it with two push pin fasteners (3).
6. Install the push pin fastener (3) that secures the inboard side of the splash shield to the front end sheet metal.
7. Install and tighten the three screws (1) that secure the outboard side of the splash shield to the front fascia. Tighten the screws to 2 N·m (19 in. lbs.).
8. Reinstall the front wheel and tire. (Refer to 22 - TIRES/WHEELS - INSTALLATION).
9. Lower the vehicle.
10. Reconnect the battery negative cable.
