SENSOR-ACCELERATOR PEDAL POSITION
DESCRIPTION
The Accelerator Pedal Position Sensor (APPS) is a variable resistor that provides the PCM with an input signal (voltage). The signal represents pedal angle position. As the position of the accelerator pedal changes, the resistance of the APPS changes.

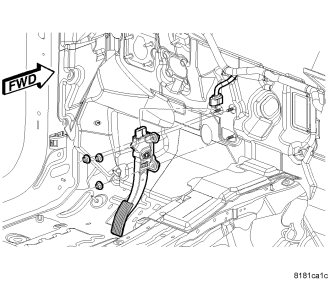

REMOVAL
1. Disconnect negative battery cable.
2. Unlock the electrical connector and then disconnect the electrical connector from the module.
3. Remove the mounting nuts.
4. Remove assembly from the mounting studs.
INSTALLATION
1. Install APPS module.
2. Tighten the mounting nuts.
3. Connect electrical connector and lock.
4. Connect negative battery cable.
