SPECIFICATIONS
GAP AND FLUSH
| DESCRIPTION |

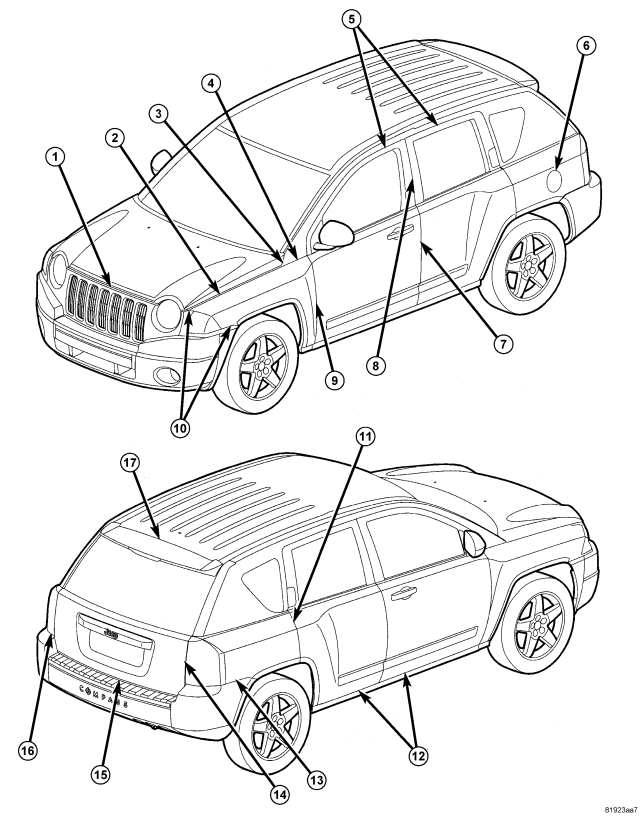

FIGURE |
| BODY GAP AND FLUSH |
GAP AND FLUSH |
| GAP AND FLUSH |
NOTE: All dimensions are in millimeters.
| Dimension |
Description |
Gap |
Flush |
| 1 |
Fascia to hood |
8.0 +/- 1.5 Parallel within 2.0 |
Fascia u/f 1.0 +/- 1.5 Consistent within 2.0 |
| 2 |
Fender to hood |
6.0 +/- 1.5 Parallel within 1.5 |
-- |
| 3 |
Hood to body side aperture (a-pillar) |
6.7 +/- 1.5 Parallel within 1.5 |
-- |
| 4 |
Body side aperture (a-pillar) to fender |
6.0 +/- 1.5 Parallel within 1.5 |
-- |
| 5 |
Door header to body side aperture |
4.5 +/- 1.2 Parallel within 1.2 |
Header u/f 1.5 +/- 1.2 Consistent within 1.5 |
| 6 |
Fuel filler door to body side |
3.0 +/- 0.8 Parallel within 0.75 |
Fuel door u/f 0.5 +/- 1.0 Consistent within 1.0 |
| 7 |
Front door to rear door (below belt) |
4.5 +/- 1.2 Parallel within 1.5 |
Front door o/f 1.0 +/- 1.0 Consistent within 2.0 |
| 8 |
Front door to rear door (above belt) |
4.5 +/- 1.2 Parallel within 1.2 |
Header u/f 1.5 +/-1.2 Consistent within 1.5 |
| 9 |
Fender to front door |
4.5 +/- 1.0 Parallel within 1.5 |
Fender o/f 1.0 +/- 1.0 Consistent within 1.0 |
| 10 |
Fascia to fender |
Between side marker and wheelhouse net to 1.0 between headlamp and side marker 2.0 +/- 2.0 |
Fascia u/f 1.0 +/- 1.0 Consistent within 1.5 |
| 11 |
Rear door to body side aperture |
4.5 +/- 1.2 Parallel within 1.2 |
+/- 1.0 Consistent within 1.5 |
| 12 |
Body side aperture to front and rear doors |
6.0 +/- 2.0 |
-- |
| 13 |
Fascia to body side aperture |
Net to 1.0 |
Fascia u/f 1.0 +/- 1.0 Consistent within 1.5 |
| 14 |
Tail lamp to liftgate |
4.0 +/- 2.0 Parallel within 2.0 Symmetrical within 2.0 lh to rh |
Lamp o/f 1.0 +/- 2.0 |
| 15 |
Fascia to liftgate |
Cross/car 4.0 +/- 2.0 |
-- |
| 16 |
Tail lamp to fascia |
1.5 +2.0/-1.5 Parallel within 2.0 Symmetrical within 2.0 rh to lh |
0.0 +/- 2.0 |
| 17 |
Liftgate to roof |
6.0 +/- 1.5 Parallel within 2.0 |
Liftgate u/f 1.0 +/- 1.2 Consistent within 2.0 |
