MODULE-HEATED SEATS
DESCRIPTION

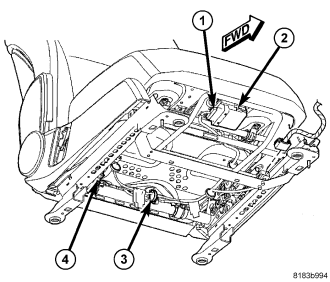

The heated seat module (2) is located under the left front seat. It has a single electrical connector (1) and a push pin style retainer that secures it to the seat pan. The module can be accessed from under the front left seat with the seat in the full back position.
The heated seat module is a microprocessor designed to use the Local Interface Network (LIN) data bus messages from the instrument cluster also known as the Cabin Compartment Node (CCN). The CCN receives inputs from the heated seat switches and in turn signals the heated seat module to operate the heated seat elements for both front seats.
OPERATION
The heated seat module operates on fused battery current received from the ignition switch. The module is grounded to the body at all times through the electrical connector. Inputs to the module include Local Interface Network (LIN) data bus messages and standard hardwired 12 volt power and ground. In response to the LIN inputs the heated seat module will control the battery current to the appropriate heated seat elements.
When a heated seat switch LIN data bus signal is received by the heated seat module, the module energizes the selected heated seat element. The Low heat set point is about 38° C (100.4° F), and the High heat set point is about 42° C (107.6° F).
In addition to operating the heated seat elements, the heated seat module sends LED illumination messages to the CCN via the LIN data bus. The CCN then sends the LED illumination message to the accessory switch bank so that the appropriate LEDs are illuminated for any given heating level. Pressing the switch once will select high-level heating. Pressing the switch a second time will select low-level heating. Pressing the switch a third time will shut the heating elements off.
If the heated seat module detects a heated seat element OPEN or SHORT circuit, it will record and store the appropriate diagnostic trouble code (DTC).
REMOVAL
CAUTION: The Heated Seat Module mounting tab can be damaged during module removal and installation. Use care to properly align tab to prevent binding that could result in tab breakage.
1. Position the right front seat to the full rearward position.
2. Disconnect and isolate the battery negative cable.

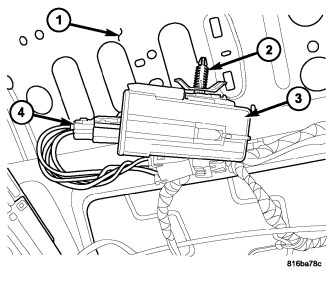

3. Disconnect the wire harness connector (4) from the heated seat module (3).
4. Unsnap the heated seat module retaining tab (2) from the seat pan (1).
5. Remove the heated seat module (3) from the vehicle.
INSTALLATION
CAUTION: The Heated Seat Module mounting tab can be damaged during module removal and installation. Use care to properly align tab to prevent binding that could result in tab breakage.
1. Install the heated seat module (3) into the vehicle.
2. Position the retaining tab (2) with the mounting hole in the seat pan (1). Firmly apply even pressure to the module (3) until the mounting tab is fully seated.
3. Connect the wire harness connector (4) to the heated seat module (3).
4. Connect the battery negative cable.
5. Check for proper heated seat system operation.
