2007 Compass Patriot MK Factory Service Manual 8 - ELECTRICAL

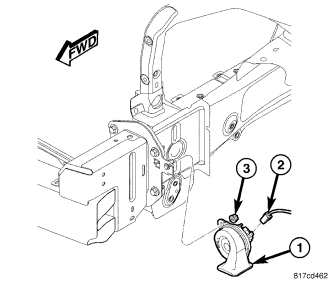

HORN

REMOVAL




1. Disconnect and isolate the battery negative cable.
2. Remove the left or right front wheelhouse splash shield.
3. Disconnect the harness connector.
4. Remove the fastener securing the horn assembly to the vehicle.

INSTALLATION




1. Install the fastener securing the horn assembly to the vehicle.
2. Connect the harness connector.
3. Install the left or right front wheelhouse splash shield.
4. Connect the battery negative cable.
