REMOVAL
GAS ENGINE
NOTE: Before proceeding, (Refer to 19 - STEERING - WARNING).
1. Siphon as much fluid as possible from the power steering fluid reservoir.
2. Remove the engine appearance cover.

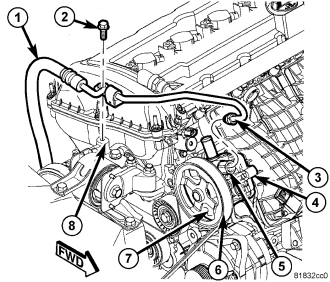

3. Remove the pressure Hose (3) at the pump pressure port (5).
4. Remove the pressure hose routing bracket bolt (2) at the upper mount (8).

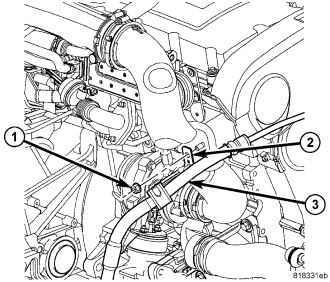

5. All except 2.4L Engine with All-Wheel-Drive - Remove the pressure hose routing clamp bolt (1) at the exhaust manifold.

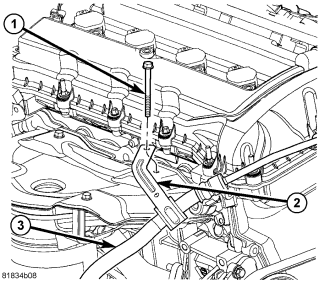

6. 2.4L Engine with All-Wheel-Drive - Remove the pressure hose routing clamp bolt (1) at the exhaust manifold.
7. Raise and support the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)

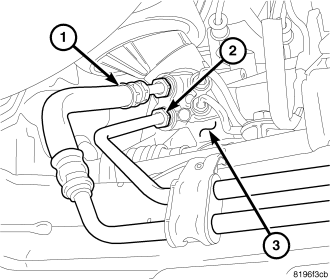

8. Remove the return hose (1) at the return tube (2).
9. Remove the return tube (1) at the steering gear (3).
10. Remove the pressure hose (2) at the steering gear (3).

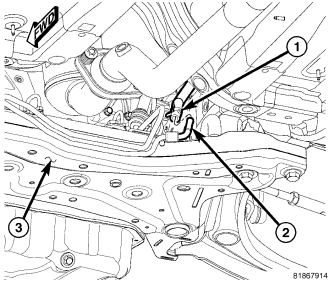

11. Remove the fasteners (1) securing the power steering hose routing clamps (2) to the crossmember.
12. Remove the power steering pressure hose from the vehicle.
DIESEL ENGINE
NOTE: Before proceeding, (Refer to 19 - STEERING - WARNING).
1. Siphon as much fluid as possible from power steering fluid reservoir.
2. Remove the engine appearance cover.

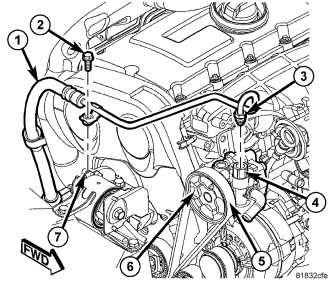

3. Remove the pressure line (3) at the pump (4).
4. Remove the pressure line routing bracket bolt (2) at the upper mount (7).

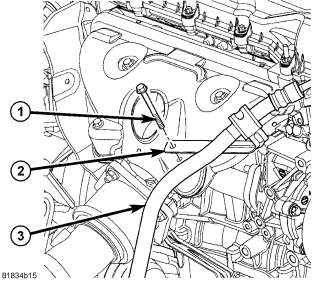

5. Remove the pressure line routing bracket bolt (1) at the back of the engine (2).
6. Raise and support the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)
7. Remove the return hose (1) at the return tube (2).
8. Remove the return tube (1) at the steering gear (3).
9. Remove the pressure hose (2) at the steering gear (3).
10. Remove the fasteners (1) securing the power steering hose routing clamps (2) to the crossmember.
11. Remove the power steering pressure hose from the vehicle.
GAS ENGINE - RIGHT-HAND-DRIVE
NOTE: Before proceeding, (Refer to 19 - STEERING - WARNING).
1. Siphon as much fluid as possible from the power steering fluid reservoir.
2. Remove the engine appearance cover.
3. Remove the pressure Hose (3) at the pump pressure port (5).
4. Remove the pressure hose routing bracket bolt (2) at the upper mount (8).
5. Raise and support the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)

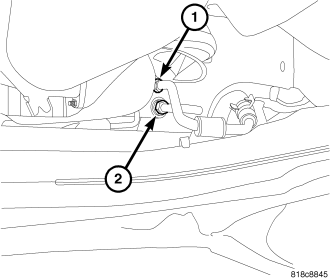

6. Unthread the tube nut (2) and remove the pressure hose at the steering gear.
7. Remove the power steering pressure hose from the vehicle.
DIESEL ENGINE - RIGHT-HAND-DRIVE
NOTE: Before proceeding, (Refer to 19 - STEERING - WARNING).
1. Siphon as much fluid as possible from power steering fluid reservoir.
2. Remove the engine appearance cover.
3. Remove the pressure line (3) at the pump (4).
4. Remove the pressure line routing bracket bolt (2) at the upper mount (7).
5. Raise and support the vehicle. (Refer to LUBRICATION & MAINTENANCE/HOISTING - STANDARD PROCEDURE)
6. Unthread the tube nut (2) and remove the pressure hose (2) at the steering gear.
7. Remove the power steering pressure hose from the vehicle.
