HVAC - SERVICE INFORMATION
DESCRIPTION
A manual temperature control (MTC) single zone type heating-A/C system or a manually controlled heater-only system is standard equipment on this model, depending on market.
To maintain the performance level of the heating, ventilation and air conditioning (HVAC) system, the engine cooling system must be properly maintained. The use of a bug screen is not recommended. Any obstructions in front of the radiator or A/C condenser will reduce the performance of the A/C and engine cooling systems.
The engine cooling system includes the radiator, thermostat, radiator hoses and the engine coolant pump. Refer to 7 - Cooling for more information before opening or attempting any service to the engine cooling system.

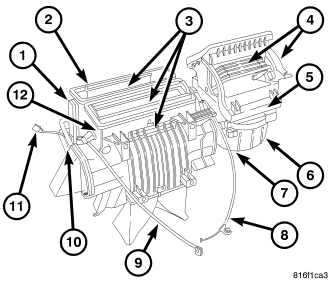

All vehicles are equipped with a common heater, ventilation and air conditioning (HVAC) housing (1). The heating-A/C system combines A/C, heating, and ventilating capabilities in a single HVAC housing mounted within the passenger compartment beneath the instrument panel. The HVAC housing includes:
- A/C evaporator (A/C system only) (2)
- Mode-air doors (3)
- Recirculation-air door and actuator (4)
- Particulate air filter (when equipped) (5)
- Blower motor (6)
- Blower motor resistor (7)
- Mode control cable (8)
- Temperature control cable (9)
- Heater core (10)
- Evaporator temperature sensor (A/C system only) (11)
- Blend-air door (12)
On heater-only systems, the A/C evaporator is omitted from the HVAC housing and is replaced with an air restrictor plate.
NOTE: An electric positive temperature coefficient (PTC) heater is used on vehicles when equipped with the 2.0L diesel engine. The PTC heater unit compensates for the lower engine coolant temperatures produced by the diesel engine. The PTC heater unit is mounted in the HVAC air distribution housing, downstream of the heater core. For more information, (refer to 24 - HEATING & AIR CONDITIONING/CABIN HEATER/HEATER UNIT - DESCRIPTION).
Based upon the system mode selected, conditioned air can exit the standard heater-only or optional heater-A/C housing through one or a combination of the three main housing outlets: defrost, panel or floor. The defrost and panel outlets are located on the top of the HVAC air distribution housing and the floor outlets are located on each side of the distribution housing. Once the conditioned air exits the HVAC housing, it is further directed through molded plastic ducts to the various outlets within the vehicle interior. These outlets and their locations are as follows:
- Defroster Outlet - A single large defroster outlet is located in the center of the instrument panel, near the base of the windshield.
- Side Window Demister Outlets - There are two side window demister outlets, one is located at each outboard end of the instrument panel top cover, near the belt line at the A-pillars.
- Panel Outlets - There are four panel outlets in the instrument panel, one located near each outboard end of the instrument panel facing the rear of the vehicle and two located near the top of the instrument panel center bezel.
- Front Floor Outlets - There are two front floor outlets, one located on each side the floor panel center tunnel behind the instrument panel.
- Rear Seat Floor Outlets - There are two rear seat floor outlets, one located on each side of the floor panel near the front of each rear seat foot well.
OPERATION
Both the manual temperature control (MTC) heating-A/C system and the heater-only system are blend-air type systems. In a blend-air system, a blend-air door controls the amount of conditioned air that is allowed to flow through, or around, the heater core. The temperature control determines the discharge air temperature by operating the blend door cable, which moves the blend-air door. This design allows almost immediate control of output air temperature.
NOTE: Typical blend-air type HVAC system shown.

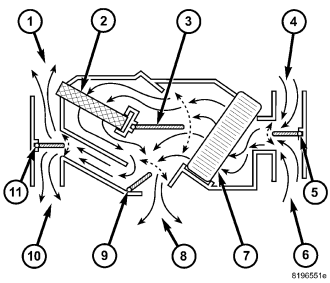

The heating-A/C system pulls outside (ambient) air through the fresh air intake (4) located at the cowl panel at the base of the windshield and into the air inlet housing above the heating, ventilation and air conditioning (HVAC) housing. On models equipped with A/C, the air passes through the A/C evaporator (7). Air flow is then directed either through or around the heater core (2). This is done by adjusting the position of the blend-air door (3) with the temperature control located on the A/C-heater control in the instrument panel. Air flow is then directed out the floor outlet (8), instrument panel outlet (10) or the defroster outlet (1) in various combinations by adjusting the position of the mode-air doors (9 and 11) using the mode control located on the A/C-heater control. The mode control uses a control cable to operated the mode-air doors.
The velocity of the air flow out of the outlets can be adjusted with the blower speed control located on the A/C-heater control.
The fresh air intake can be shut off by pressing the Recirculation button on the A/C-heater control. This will operate the electrically actuated recirculation-air door (5), which closes off the fresh air intake. With the fresh air intake closed, the conditioned air within the vehicle is pulled back into the HVAC housing through the recirculation air intake (6) located within the passenger compartment.
The A/C compressor can be engaged by pressing the A/C (snowflake) button on the A/C-heater control. It will automatically engage when the mode control is set in any Mix to Defrost position. This will remove heat and humidity from the air before it is directed through or around the heater core. The mode control on the A/C-heater control is used to direct the conditioned air to the selected system outlets.
The front and rear floor outlets receive airflow from the HVAC housing through the front and rear floor ducts. The front floor outlets are integral to the molded plastic front floor ducts, which are secured to each side of the HVAC housing. Two molded plastic rear seat ducts are attached to the two molded plastic rear floor ducts, which are secured to the rear of the HVAC housing. The rear seat ducts direct airflow beneath the carpet to the outlets located near the front of each rear seat foot well. None of the floor outlets can be adjusted.
The panel outlets receive airflow from the HVAC housing through the center air distribution duct and molded plastic panel outlet ducts. The airflow from each of the panel outlets is adjustable. A thumbwheel located at the bottom of each panel outlet grille is used to adjust a center diffuser that changes the airflow direction, and a knob on the outer edge of each panel outlet grille opens or closes a shutter to turn airflow on or off through that outlet.
The defroster outlet receives airflow from the HVAC housing through the molded plastic defroster duct, which is secured to the top of the instrument panel. The airflow from the defroster outlet is directed by fixed vanes in the defroster outlet grille and cannot be adjusted.
The side window demister outlets receive airflow from the HVAC housing through the defroster duct and molded plastic demister ducts. The airflow from the side window demister outlets is directed by fixed vanes in the demister outlet grilles and cannot be adjusted. The side window demister outlet grilles are integral to the instrument panel cover and direct air from the HVAC housing through the outlets on the top corners of the instrument panel. The demisters operate when the mode control is set in any Floor to Defrost position.
