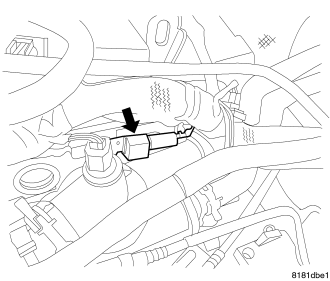

CAPACITOR-IGNITION COIL
REMOVAL
1. Disconnect the negative battery cable.
2. Remove the electrical connector from the ignition coil capacitor.
3. Remove mounting bolt and remove capacitor.
INSTALLATION
1. Install coil capacitor (with connector facing rearward) and mounting bolt and tighten to 10 N·m (88.5 in. lbs.).
2. Connect the electrical connector.
3. Connect the negative battery cable.
