GLOVE BOX
REMOVAL
NOTE: ND vehicle line shown, MK vehicle line similar.

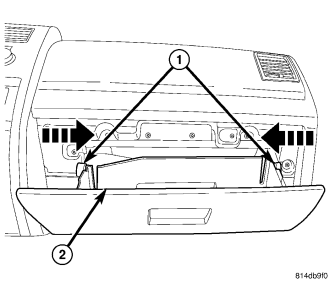

1. Open the glove box and squeeze the stop tabs inward.
2. Lower the glove box and release the hinges (1) using a twisting motion and remove the glove box.
INSTALLATION
NOTE: ND vehicle line shown, MK vehicle line similar.

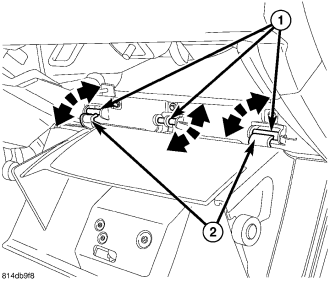

1. Position the glove box and twist the box tabs (2) onto the hinges (1) using a twisting motion as indicated.
2. Close the box and squeeze the stop tabs inward and engage into the instrument panel.
