BEZEL - CONSOLE SHIFTER
REMOVAL

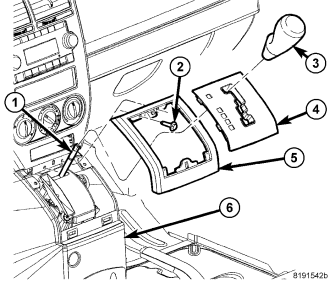

Automatic
1. Pull up on shifter knob (3) and remove.
2. Using trim stick C-4755 or equivalent, separate the bezel (4) from the trim ring (5), if equipped.
3. Remove the screws (2) and using trim stick C-4755 or equivalent, separate the trim ring (5) from the shifter console (6).

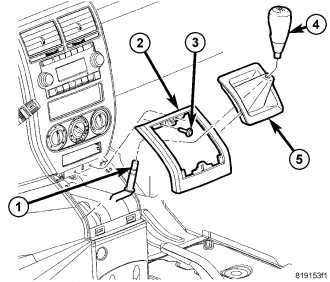

Manual
1. Pull up on shifter knob (4) and remove.
2. Using trim stick C-4755 or equivalent, pry up on the shifter boot (5) and separate from the trim ring (3).
3. Remove the screws (3) and using trim stick C-4755 or equivalent, separate the trim ring (2) from the shifter console (6).
INSTALLATION
Automatic
1. Install the trim ring (5) onto the shifter console (6) and seat fully.
2. Install the screws (2).
3. Install the bezel (4) onto the trim ring (5) and seat fully.
4. Install the shift knob (3) onto the shifter (1) and seat fully.
Manual
1. Install the trim ring (2) onto the shifter console and seat fully.
2. Install the screws (3).
3. Install the shift boot (5) onto the trim ring (2) and seat fully.
4. Install the shift knob (4) onto the shifter (1) and seat fully.
