CONSOLE - FLOOR
REMOVAL
1. Set the parking brake lever in the up position.
2. Remove the two screws from the console bin.

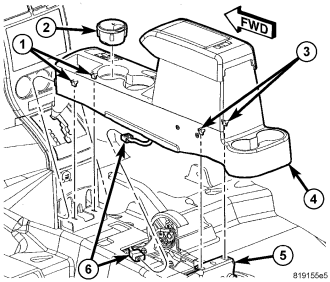

3. Lift the console (4) up at the front from underneath right hand and left hand sides of console base at the same time and release the console clips (1).
4. Lift console from rear and release the rear clips (3).
5. Disconnect the electrical connector (6).

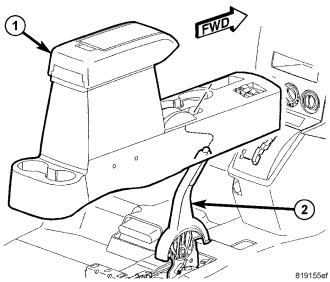

6. Lift the console (1) up and over the park break lever (2) and remove.
INSTALLATION
1. Position the console (1) into the vehicle and down over the park break lever (2).
2. Connect the electrical connector (6).
3. Position the front of the console (4) up into the shifter console and position the front clips (1).
4. Position the rear of the console down and seat the clips (1 and 3) fully.
