PANEL - B-PILLAR TRIM, UPPER
REMOVAL

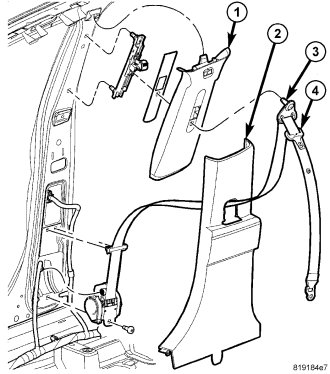

1. Remove the screw (3) that secures the seat belt turning loop to the height adjuster on the upper B-pillar.
2. Remove the seat belt turning loop from the height adjuster.
3. Separate the lower B-pillar trim (2) from the pillar and position aside.
4. Remove the upper B-pillar trim (1).
INSTALLATION
1. Align the upper tab and position the upper B-pillar trim (1) into place and seat the trim fully.
2. Install and tighten the screw (3) that secures the turning loop to the height adjuster. Tighten the screw to 40 N·m (30 ft. lbs.).
3. Position the lower B-pillar trim (2) into place and seat fully.
