PANEL - COWL SIDE
REMOVAL

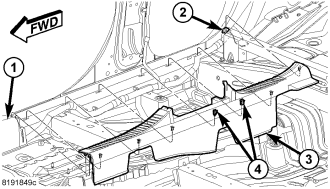

1. Release the front retaining clips (4) and position the front of the door scuff aside to access the cowl trim (1).
2. Remove the fastener (2) and release the retaining clip.
3. Guide the trim off the hood release, if required, and remove.
INSTALLATION

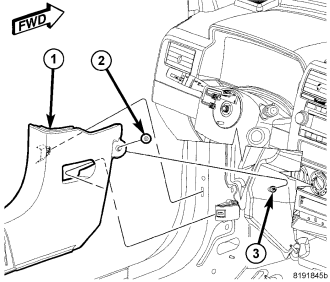

1. Position the trim (1) over the hood release, if required, and seat the retaining clip fully.
2. Install the fastener (2).
3. Position the door scuff (3) into back into place over the scuff (1) and seat the retaining clips fully.
