PLATE - DOOR SCUFF
REMOVAL
1. Separate the lower B-pillar trim (2) from the pillar and position aside.
2. Using a trim stick C-4755 or equivalent, release the retaining clips (4) and remove the door scuff (3).
INSTALLATION
1. Position the door scuff plate (3) onto the door sill and insert the clips (4) into the sill and interior trim panels (1 and 2).
2. Seat the clips (4) fully.

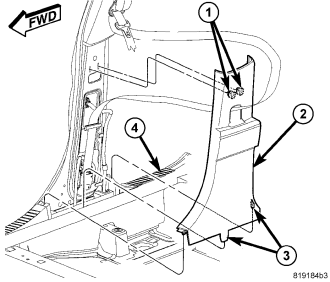

3. Position the lower tabs (3) into the scuff plate (4) and seat the upper retaining clips (1) fully.
