2007 Compass Patriot MK Factory Service Manual 23 - BODY

PLATE - LIFTGATE SCUFF

REMOVAL




1. Remove the two screws and the cargo hooks, if equipped.

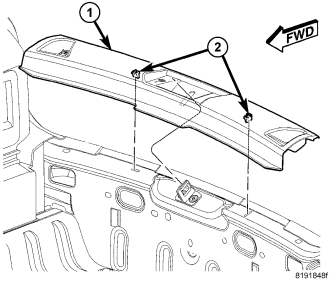

2. Using a trim stick C-4755 or equivalent, release the retaining clips (2) and remove the liftgate scuff plate (1).

INSTALLATION




1. Position the liftgate scuff plate (1) onto the liftgate sill and seat the retaining clips (2) fully.
2. Install the two cargo rings and screws, if equipped.
