B1648-REAR RIGHT TURN CONTROL CIRCUIT HIGH

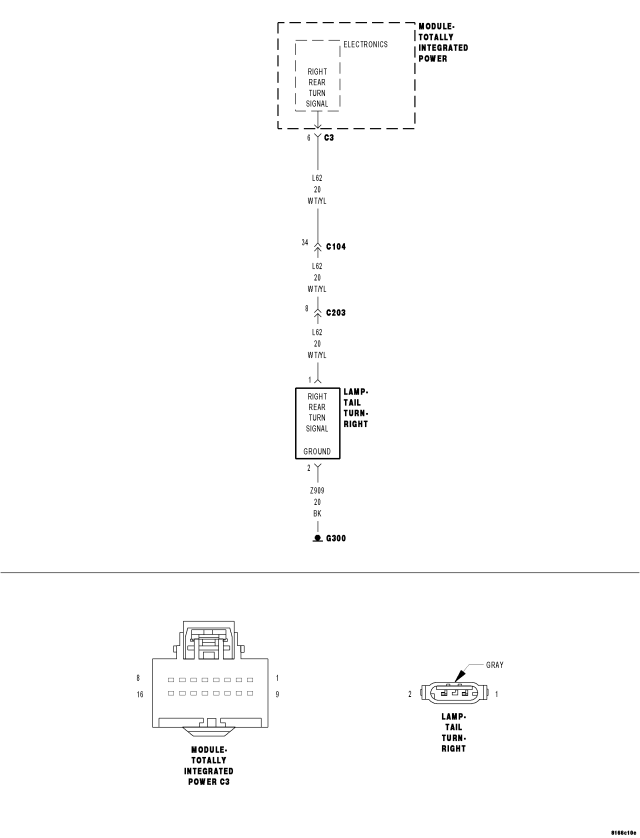

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
Continuously
- Set Condition:
When the Totally Integrated Power Module detects a short to battery on the Control circuit.
| Possible Causes |
| (L62) RIGHT REAR TURN SIGNAL CONTROL CIRCUIT OPEN |
| (L62) RIGHT REAR TURN SIGNAL CONTROL CIRCUIT SHORTED TO VOLTAGE |
| TOTALLY INTEGRATED POWER MODULE |
Diagnostic Test
1. TEST FOR INTERMITTENT CONDITIONTurn the ignition on.
Clear all TIPM DTC's
Turn the Right Turn Signal on.
With the scan tool, read DTC's.
Does the scan tool read: B1648-REAR RIGHT TURN CONTROL CIRCUIT HIGH?
Yes
- Go To 2
No
- The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors.
- Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. RIGHT REAR TURN SIGNAL BULB
Turn the ignition off.
Inspect the Right Rear Turn Signal Bulb Assembly.
Is the inoperative bulb OK?
Yes
- Go To 3
No
- Replace the Inoperative bulb in accordance with the service information.
- Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
3. (L62) RIGHT REAR TURN SIGNAL CONTROL CIRCUIT OPEN
Turn the ignition off.
Disconnect the TIPM C3 harness connector.
Disconnect the Right Rear Tail Lamp harness connector.
Measure the resistance of the (L62) Right Rear Turn Signal Control circuit.
Is the resistance above 5.0 ohms?
Yes
- Repair the (L62) Right Rear Turn Signal Control circuit for an open.
- Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Go To 4
4. (L62) RIGHT REAR TURN SIGNAL CONTROL CIRCUIT SHORTED TO VOLTAGE
Turn the ignition on.
Measure the (L62) Right Rear Turn Signal Control circuit for short to voltage.
Is there any voltage present?
Yes
- Repair short to voltage on the (L62) Right Rear Turn Signal Control circuit.
- Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Totally Integrated Power Module (TIPM) in accordance with the service information.
- Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
