B165E-PARK LAMP CONTROL CIRCUIT OPEN

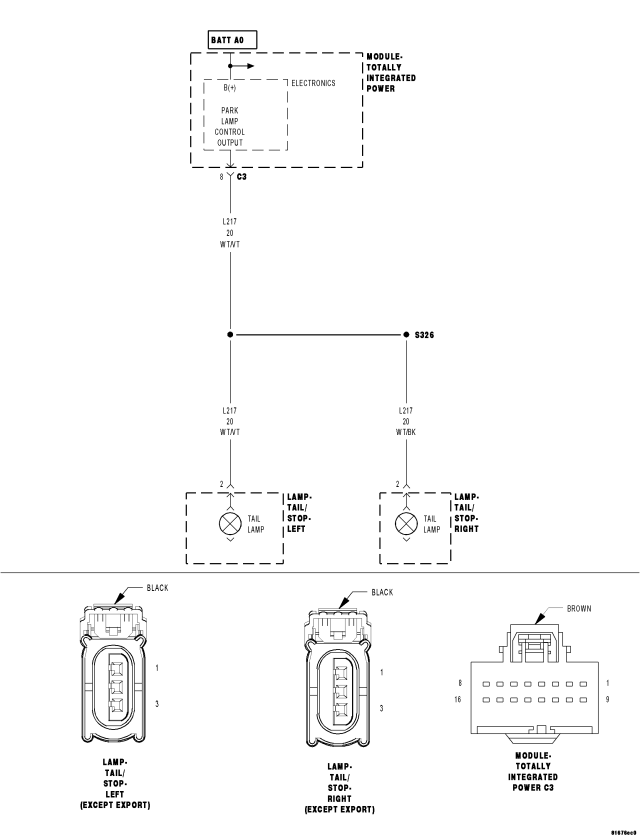

For a complete wiring diagram Refer to Section 8W.
- When Monitored:
- With the Park Lamps Activated.
- Set Condition:
- When the TIPM detects a HIGH condition.
| Possible Causes |
| (L217) PARK LAMP CONTROL CIRCUIT OPEN |
| LEFT AND/OR RIGHT PARK LAMP BULBS |
| TOTALLY INTEGRATED POWER MODULE |
Diagnostic Test
1. INTERMITTENT CONDITIONTurn the ignition on.
With the Scan Tool, clear all TIPM DTC's.
Turn the Stop Lamps on.
With the Scan Tool read the DTC information.
Does the Scan Tool read: B165E-PARK LAMP CONTROL CIRCUIT OPEN?
Yes
- Go To 2
No
- The condition that caused the symptom is currently not present. Inspect the related wiring for a possible intermittent condition. Look for any chafed, pierced, pinched, or partially broken wires.
- Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
2. PARK LAMP BULBS
Turn the ignition off.
Inspect the Left and Right Park Lamp Bulb Assemblies.
Are the inoperative bulbs OK?
Yes
- Go To 3
No
- Replace the Inoperative bulb or bulbs in accordance with the service information.
- Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
3. (L217) PARK LAMP CONTROL CIRCUIT OPEN
Turn the ignition off.
Disconnect the TIPM C3 harness connector.
Disconnect the Left and Right Park Lamp harness connectors.

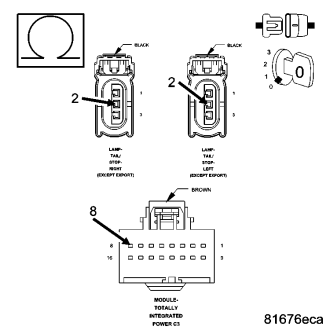

Measure the resistance of the (L217) Park Lamp Control circuit.
Is the resistance above 5.0 ohms?
Yes
- Repair the (L217) Park Lamp Control circuit for an open condition.
- Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Totally Integrated Power Module (TIPM) in accordance with the service information.
- Perform the BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
