WIRING-TRAILER TOW
DESCRIPTION

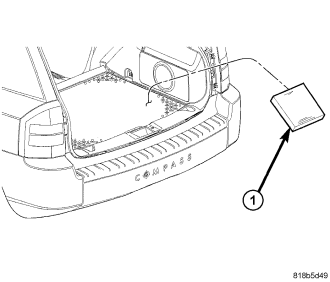

Vehicles equipped with an optional Trailer Tow Prep package have a trailer tow wiring jumper harness and an instruction card (1) that are placed in the cargo area of the vehicle when it is shipped from the factory. This package also includes an additional fused B(+) circuit in the unibody wire harness behind the right D-pillar trim for connection to the trailer tow wiring jumper harness.
OPERATION
The trailer tow wiring jumper harness is connected to the unibody wire harness at the right rear lamp unit connections. The fused B(+) circuit take out is located near the rubber grommet for the right rear lamp wiring take outs of the unibody wire harness behind the right rear D-pillar trim. The jumper harness can be connected by removing the right rear lamp unit and unseating the rubber grommet from the D-pillar to access the fused B(+) circuit take out. Refer to the Instruction Card packaged with the jumper harness for additional details.
