HINGE
REMOVAL
NOTE: It is not necessary to remove the liftgate to replace one or both hinges. The hinges can be replaced one at a time.
NOTE: A suitable body sealant should be used when removing or moving the hinges.
1. Support liftgate on a suitable lifting device.
2. Disconnect liftgate harness and washer hose.
3. Using a grease pencil or equivalent, mark the location of the hinge to aid installation.
4. Remove the two bolts that secure the liftgate hinge (1) to the liftgate.
5. Carefully, move down headliner and remove two nuts and one fastener. Remove hinge from vehicle.
INSTALLATION
NOTE: A suitable body sealant should be used when removing or moving the hinges.
1. If necessary, paint replacement hinge before installation.
2. Carefully, pry down headliner and install the nuts (1) and bolt (2).
3. Tighten fasteners to 15 N·m (11 ft. lbs.).
4. Install the liftgate bolts (1) and tighten to 15 N·m (11 ft. lbs.).

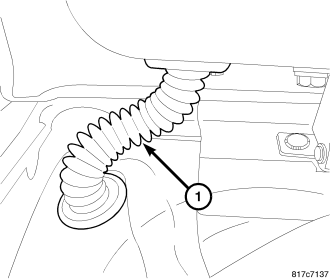

5. Connect liftgate harness (1) and washer hose.
6. Adjust liftgate if necessary,
7. Position the upper rear headliner back into place and seat the two push pin fasteners fully.
