PANEL - TRIM
REMOVAL

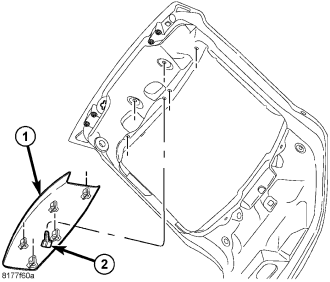

Liftgate Header Panel
1. Using a trim stick C-4755 or equivalent, separate the clip fasteners (2) and remove the upper trim (1).

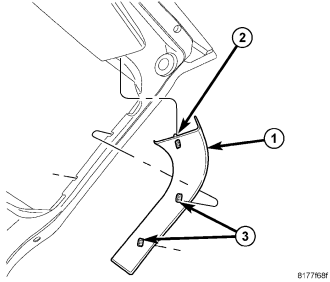

Liftgate Panel
1. Using a trim stick C-4755 or equivalent, separate the clip fasteners (2 and 3) and remove the side trim panels (1).

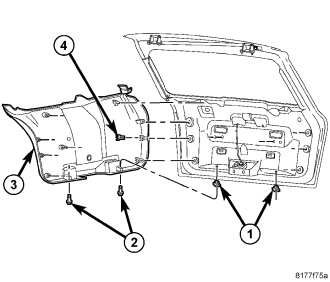

Liftgate Trim Panel
1. Remove the screws (2).
2. Using a trim stick C-4755 or equivalent, separate the clip fasteners (4) and remove the trim panel (3).

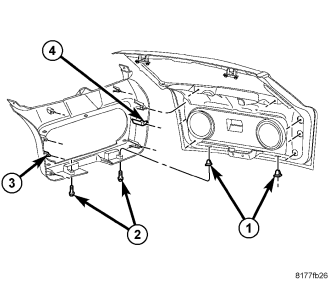

Liftgate Trim and Speaker Panel
1. Remove the screws (2).
2. Using a trim stick C-4755 or equivalent, separate the clip fasteners (4) and remove the trim panel (3).

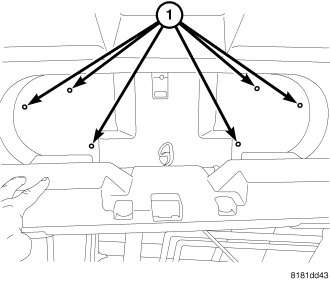

3. Open the speaker panel assembly and remove the screws (1).

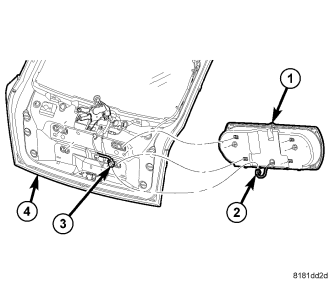

4. Disconnect the electrical connectors (2 and 3) and remove the speaker panel assembly (1).
INSTALLATION
Liftgate Trim and Speaker Panel
1. Connect the electrical connectors (2 and 3) and position the speaker panel assembly (1) into place.
2. Install the mounting screws (1) and close the speaker panel.
3. Position the trim panel (3) back into place and seat the fastener clips (4) fully.
4. Install the two lower screws (2).
Liftgate Trim Panel
1. Position the trim panel (3) back into place and seat the fastener clips (4) fully.
2. Install the two lower screws (2).
Liftgate Panel
1. Position the side panels (1) into place and seat the fastener clips (2 and 3) fully.
Liftgate Header Panel
1. Position the upper trim panel (1) into place and seat the fastener clips (2) fully.
