INSTALLATION
INTAKE MANIFOLD
1. Clean all gasket surfaces.
2. Replace intake manifold gasket.

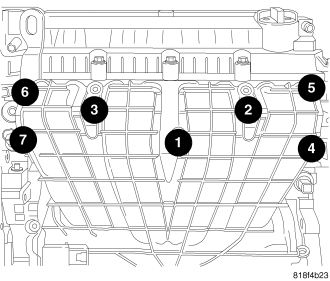

3. Install intake manifold, tighten bolts to 25 N·m (220 in. lbs.).
4. Install the fuel rail assembly to intake manifold. Tighten bolts to 23 N·m (200 in. lbs.).
5. Connect fuel injector electrical connectors.
6. Inspect quick connect fittings for damage, replace if necessary (Refer to 14 - FUEL SYSTEM/FUEL DELIVERY/QUICK CONNECT FITTING - STANDARD PROCEDURE). Connect fuel supply hose to fuel rail assembly. Check connection by pulling on connector to insure it locked into position.

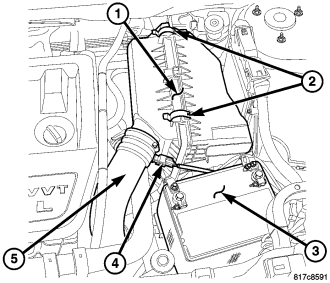

7. Connect negative cable to battery (3).
8. Fill the cooling system (Refer to 7 - COOLING/ENGINE - STANDARD PROCEDURE).
9. Install air cleaner housing (1).

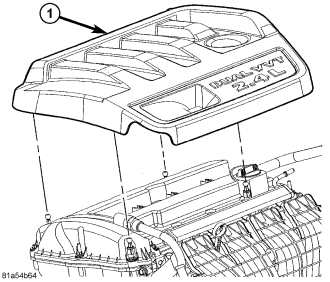

10. Install engine cover.
