MODULE-TRAFFIC MESSAGE CENTER
DESCRIPTION

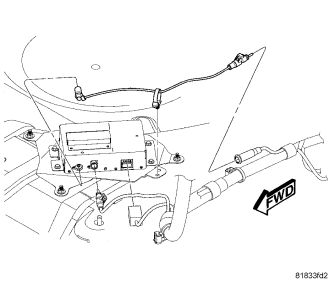

The Traffic Message Channel module (TMC) provides traffic information to the navigation system to update planned routes in the event of a traffic accident, construction or any other condition that causes traffic to be increased. This allows the users to avoid these congested areas and be automatically rerouted to get to their destination.REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Disconnect the antenna cables.
3. Disconnect the wire harness connector.
4. Remove the retaining fasteners.
5. Remove the Traffic Message Channel module (TMC).
INSTALLATION
1. Install TMC.
2. Install the mounting fasteners.
3. Connect the wire harness connector.
4. Connect the antenna cables
5. Connect battery negative cable.
