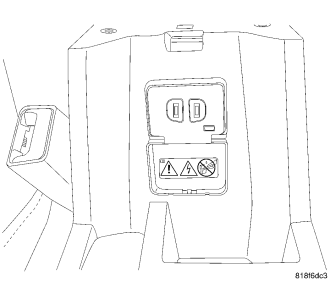

POWER OUTLET-AC
REMOVAL
1. Disconnect and isolate the negative battery cable.
2. Remove the center console. (Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - REMOVAL).
3. Disconnect electrical connector.
4. Remove AC power outlet.
INSTALLATION
1. Install the AC power outlet.
2. Connect electrical connector.
3. Install the center console. (Refer to 23 - BODY/INTERIOR/CENTER CONSOLE - REMOVAL).
4. Connect the battery negative cable.
