*ALL DOORS FAIL TO LOCK

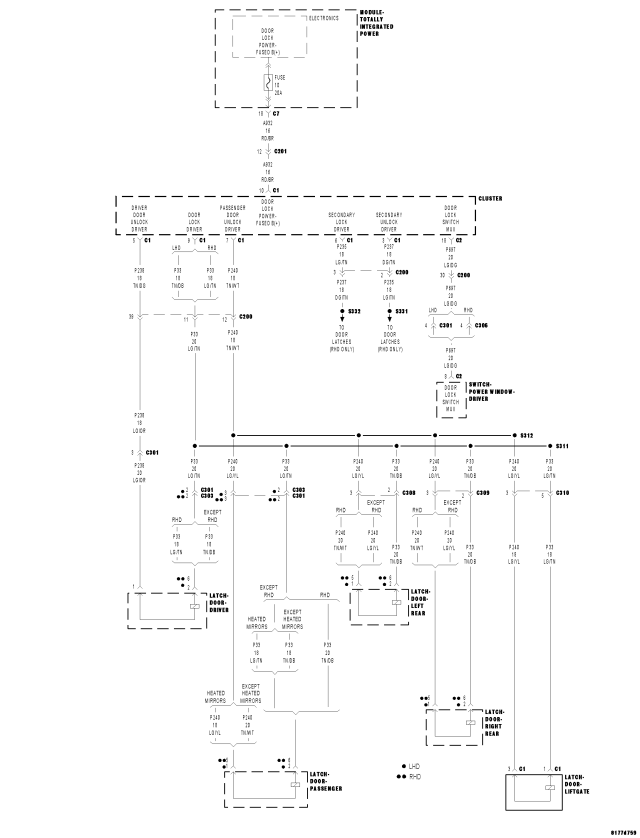

For a complete wiring diagram Refer to Section 8W.
| Possible Causes |
| (P33) DOOR LOCK DRIVER WIRE SHORT TO GROUND |
| INSTRUMENT CLUSTER |
Theory of Operation
This test does not cover a secondary latch problem on a right hand drive vehicle.
1. (P33) DOOR LOCK DRIVER WIRE SHORT TO GROUND
Turn the ignition off.
Disconnect the Instrument Cluster C1 connector.
Measure the resistance between ground and the (P33) Door Lock Driver circuit.
Is the resistance below 5.0 ohms?
No
- Replace the Instrument Cluster in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
Yes
- Repair the (P33) Door Lock Driver wire for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
