*DRIVER DOOR FAILS TO UNLOCK

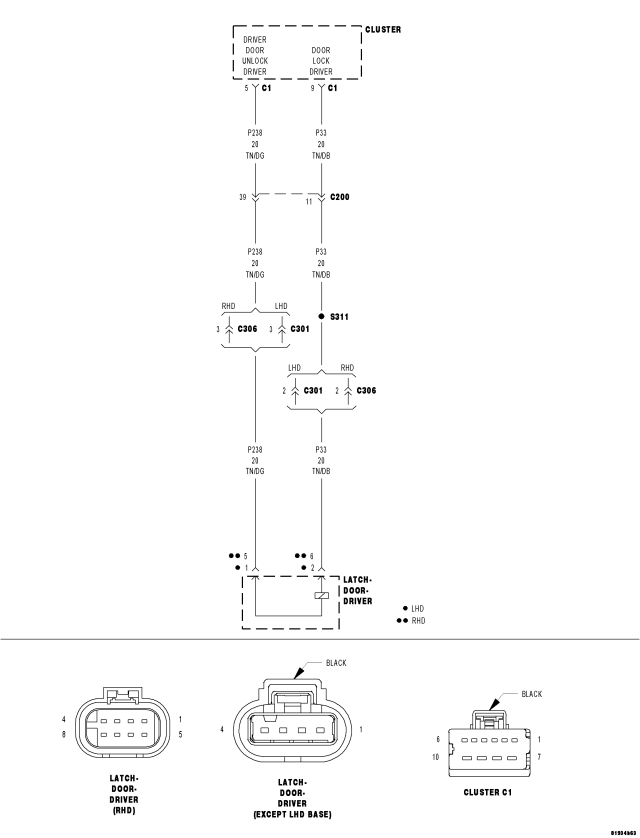

For a complete wiring diagram Refer to Section 8W.
| Possible Causes |
| (P238) DRIVER DOOR UNLOCK DRIVER WIRE SHORT TO GROUND |
| INSTRUMENT CLUSTER |
Theory of Operation
This test does not cover a secondary latch problem on a right hand drive vehicle.
1. (P238) DRIVER DOOR UNLOCK DRIVER WIRE SHORT TO GROUND
Turn the ignition off.
Disconnect the Instrument Cluster C1 connector.
Measure the resistance between ground and the (P238) Driver Door Unlock Driver circuit.
Is the resistance below 1,000.0 ohms?
Yes
- Repair the (P238) Driver Door Unlock Driver wire for a short to ground.
- Perform BODY VERIFICATION TEST - VER 1. (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
No
- Replace the Instrument Cluster in accordance with service information.
- Perform BODY VERIFICATION TEST - VER 1 (Refer to 8 - ELECTRICAL/ELECTRONIC CONTROL MODULES - STANDARD PROCEDURE)
