LIFTGATE LOCK MOTOR
REMOVAL
1. Disconnect and isolate the battery negative cable.
2. Remove liftgate trim panel.
3. Disconnect motor wire harness connector.

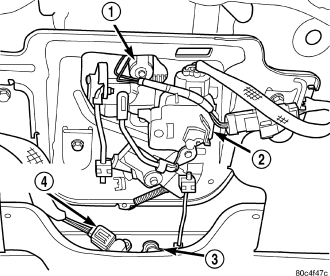

4. Remove liftgate lock motor (2) from liftgate by gently unsnapping.
INSTALLATION
1. Install liftgate lock motor (2) on the liftgate .
2. Install motor wire harness connector.
3. Install the liftgate trim panel.
4. Connect the battery negative cable.
