2007 Compass Patriot MK Factory Service Manual 8 - ELECTRICAL

B1B29-1ST ROW DRIVER SEAT BELT PRETENSIONER CIRCUIT HIGH

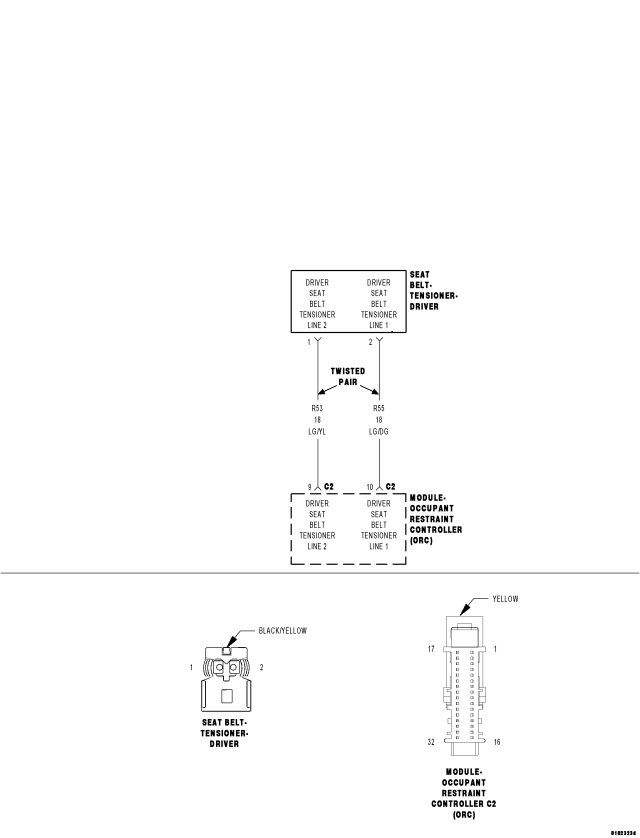

For a complete wiring diagram Refer to Section 8W.



Possible Causes

(R55) DRIVER SEAT BELT TENSIONER LINE 1 CIRCUIT OR (R53) DRIVER SEAT BELT TENSIONER LINE 2 CIRCUIT SHORTED TO BATTERY

DRIVER SEAT BELT PRETENSIONER

OCCUPANT RESTRAINT CONTROLLER (ORC)





Diagnostic Test

1. DETERMINE ACTIVE OR STORED DTC

NOTE: Ensure that the battery is fully charged.

NOTE: The scan tool, SRS Airbag Load Tool MRL 8443, and DVOM are required to perform the following test.


Turn the ignition on.

Select ACTIVE or STORED DTC:

ACTIVE DTC


STORED DTC

2. CHECK FOR SHORTED DRIVER SEAT BELT PRETENSIONER


WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.


Disconnect the Driver Seat Belt Pretensioner connector.

NOTE: Check connectors - Clean and repair as necessary.


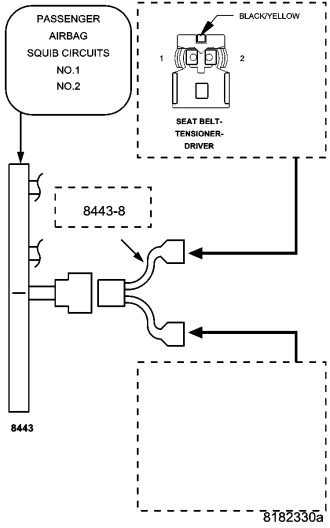

Connect the 8443 Load Tool and 8443-8 Jumper to the Driver Seat Belt Pretensioner connector.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.


With the scan tool, read the active ORC DTCs.

Does the scan tool display: B1B29-1st ROW DRIVER SEAT BELT PRETENSIONER CIRCUIT HIGH?

Yes


No

3. CHECK (R55) DRIVER SEAT BELT TENSIONER LINE 1 CIRCUIT AND (R53) DRIVER SEAT BELT TENSIONER LINE 2 CIRCUIT FOR A SHORT TO BATTERY


WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.


Disconnect the 8443 Load Tool and Jumper from the Driver Seat Belt Pretensioner connector.
Disconnect the ORC connectors.

NOTE: Check connectors - Clean and repair as necessary.


Connect the ORC 8443-25 Adaptor to the ORC connectors.
Measure the voltage of the (R55) Driver Seat Belt Tensioner Line 1 circuit between the ORC 8443-25 Adaptor cavity 32-10 and ground.
Measure the voltage of the (R53) Driver Seat Belt Tensioner Line 2 circuit between the ORC 8443-25 Adaptor cavity 32-9 and ground.

Is there any voltage present on either circuit?

Yes


No

4. CHECKING STORED OR INTERMITTENT CODES

NOTE: Diagnose and repair all active codes before diagnosing stored codes. Refer to the Table of Contents in this Section for a complete list of airbag system diagnostic procedures.


With the scan tool, record and erase all Airbag System Module DTCs.

WARNING: To avoid personal injury or death, turn the ignition off, disconnect the battery and wait two minutes before proceeding.


Using the wiring diagram/schematic as a guide, inspect the related wiring and connectors for chafed, pierced, pinched, and partially broken wires, and for broken, bent, pushed out, corroded, and contaminated terminals. Repair as necessary.
Reconnect all disconnected components and harness connectors.

WARNING: To avoid personal injury or death, turn the ignition on, then reconnect the battery.


With the scan tool, monitor for active codes while performing the following:
In the previous steps you have attempted to recreate the conditions responsible for setting the DTC in question / causing the intermittent condition.

Are any ACTIVE DTCs present?

Yes


No
