DEFLECTOR-WIND
REMOVAL
1. Open the sunroof glass to the full open position.

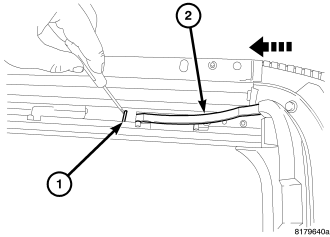

2. Press the spring lock (1) with a small flat bladed tool and push the wind deflector (2) reward to release from the car top opening.
3. Repeat the previous step on the opposite side.

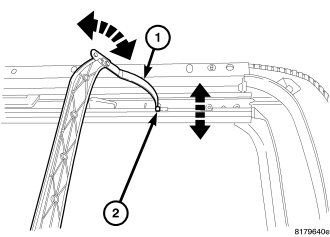

4. Rotate the wind deflector (1) up and release from the mounting hole (2) in the sunroof frame.
INSTALLATION
1. Position the wind deflector springs (1) into the mounting holes (2) in the sunroof frame.
2. Rotate forward and down into position.
3. Slide the wind deflector and spring (1) forward under the car top lip and make sure the spring lock snaps into place (2) fully.
