TROUGH
REMOVAL
1. Remove the glass (Refer to 23 - BODY/SUNROOF/GLASS - REMOVAL).
2. Separate the trough pins (3) from the glass lift mechanisms (1).

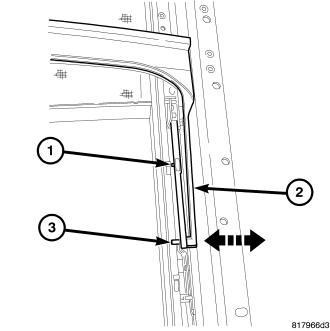

3. Slide trough (1) to one side and push down on the center of the trough until the guide shoe tab (3) releases from the track (2).
4. Slide the trough in the opposite direction to release the other shoe and lift the trough out of the sunroof opening.
INSTALLATION
1. Insert one of the trough guides (3) and guide shoe (2) into the track.
2. Push down on the center of the trough (1) to flatten it out and install the remaining trough guide (3) and guide shoe (2) into the track.
3. Install the trough guide pins into the glass lift mechanism (3) and seat fully.
4. Install the glass (Refer to 23 - BODY/SUNROOF/GLASS PANEL - INSTALLATION).
