BEARING AND SLEEVE-INPUT
REMOVAL

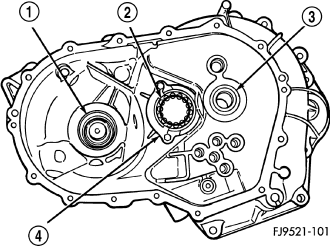

The input bearing (3) is a one-piece bearing and sleeve unit. The sleeve is the slide point for the clutch-release bearing and lever.
1. Install Puller 9585 (2) and Slide Hammer C-637 (1) over into bearing on the gear case side of the transaxle clutch housing (4).
2. Pull the input bearing (3) out of the housing.
INSTALLATION
1. Apply coating of Loctite® sealant on bearing outer diameter. Position sleeve and bearing assembly at input bearing bore.

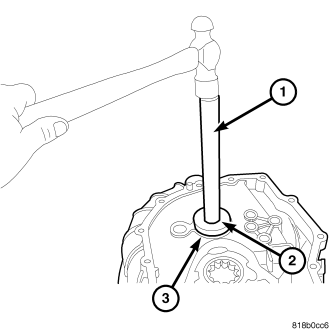

2. Using Installer 5064 (2) and Handle C-4171 (1) install input bearing (3) into bore until it is fully seated.
