BUSHING-SHIFT SELECT SHAFT
REMOVAL

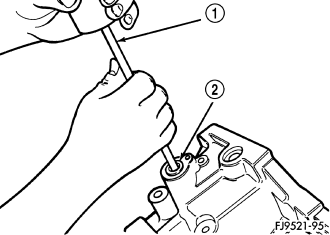

1. Install Slide Hammer C-3752 (1) through the select bushing.
2. Thread nut and washer onto slide hammer.
3. Using the slide hammer, remove the select shaft bushing (2).
INSTALLATION
1. Position the replacement select shaft bushing over the crossover shaft bushing bore.
2. Using an appropriate size deep-well socket, install the select shaft bushing into the bushing bore.
