CUPS-DIFFERENTIAL BEARING
REMOVAL
1. Remove differential assembly from gear case (2) using the procedure outlined in this group.

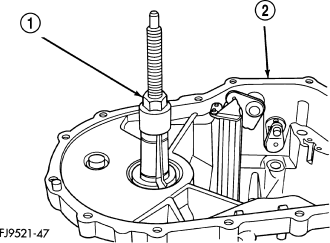

2. Install Remover L-4518 (1) into the differential bearing cup.
3. Install the tool cup (2) over the tool.
4. Tighten the tool until the race is removed from the case.
INSTALLATION
1. Position the bearing cup into the case.
2. Install the bearing cup onto Installer L-4520.
3. Using Installer L-4520 and Universal Handle C-4171, install differential bearing cup into the transaxle case.
