2007 Compass Patriot MK Factory Service Manual 21 - TRANSAXLE

KNOB-GEAR SHIFT

REMOVAL

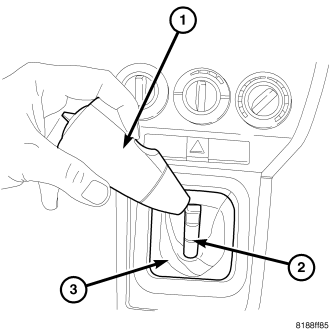

1. Pull up on gearshift knob (1) with moderate force to remove from gearshift mechanism.

INSTALLATION




1. Position knob hole (1) over the gearshift mechanism and align the shift pattern.
2. Verify that shift pattern is aligned properly.
3. Strike knob (1) with rubber mallet to engage knob to mechanism.
