SHAFT-SELECT
REMOVAL
1. Disassemble transaxle.
2. With the transaxle disassembled, remove the select shaft seal.

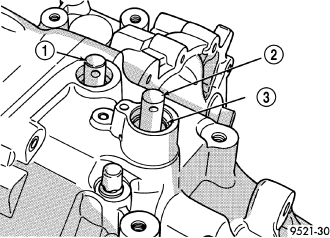

3. Using snap-ring pliers, remove the snap ring (3) at the select shaft bore.
4. Push the select shaft (2) in the case and remove the select assembly.
INSTALLATION
1. Install select shaft to case and install snap ring (3).
2. Install the select shaft seal.
3. Assemble transaxle.
