2007 Compass Patriot MK Factory Service Manual 21 - TRANSAXLE

SWITCH-BACK-UP LAMP

REMOVAL




1. Lift vehicle on hoist.

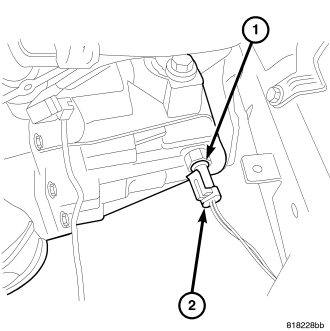

2. From bottom side of vehicle, disconnect back-up lamp switch connector (2).

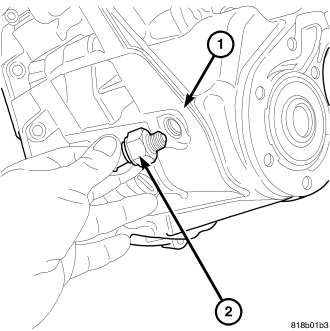

3. Unscrew switch (2) from transaxle.

INSTALLATION



Install back-up lamp switch (2). Teflon tape or equivalent must be used on switch threads. Tighten switch to 24 N·m (18 ft. lbs.).

CAUTION: Do not overtighten switch.




1. Connect back-up lamp switch connector (2).
2. Lower vehicle.
3. Verify back-up lamp operation.
