TROUGH-REAR BEARING OIL FEED
REMOVAL

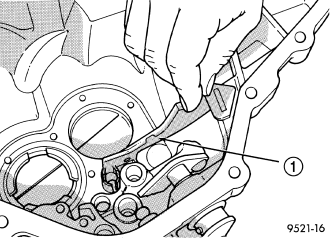

The bearing oil feed trough (1) is retained in the case by a pin that is molded into the case and clips that are part of the trough.
1. Using light plier pressure, squeeze the clips together at the rear of the trough.
2. Slide the trough over the retaining pin that locates the trough in the case.
INSTALLATION
1. Slide the trough (1) over the retaining pin that locates the trough in the case.
