INSTALLATION
FRONT

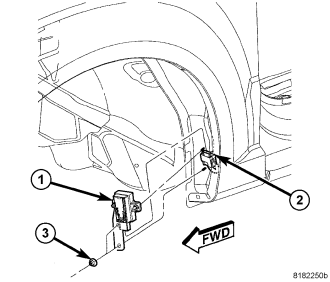

1. Position the transponder (1) and install the mounting nuts (3).
2. Connect the wiring harness connector (2) to the transponder (1).
3. Install the wheelhouse splash shield and all components removed to access it. (Refer to 23 - BODY/EXTERIOR/F WHEELHOUSE SPLASH SHIELD - INSTALLATION)
4. Perform the TPM Diagnostic Verification Test. (Refer to 22 - TIRES/WHEELS/TIRE PRESSURE MONITORING - STANDARD PROCEDURE)
REAR

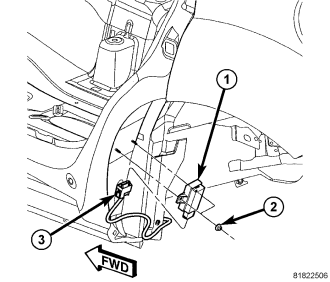

1. Position the transponder (1) and install the mounting nuts (2).
2. Connect the wiring harness connector (3) to the transponder (1).
3. Install the wheelhouse splash shield and all components removed to access it. (Refer to 23 - BODY/EXTERIOR/REAR WHEELHOUSE SPLASH SHIELD - INSTALLATION)
4. Perform the TPM Diagnostic Verification Test. (Refer to 22 - TIRES/WHEELS/TIRE PRESSURE MONITORING - STANDARD PROCEDURE)
